| Specification Item | Details & Parameters |

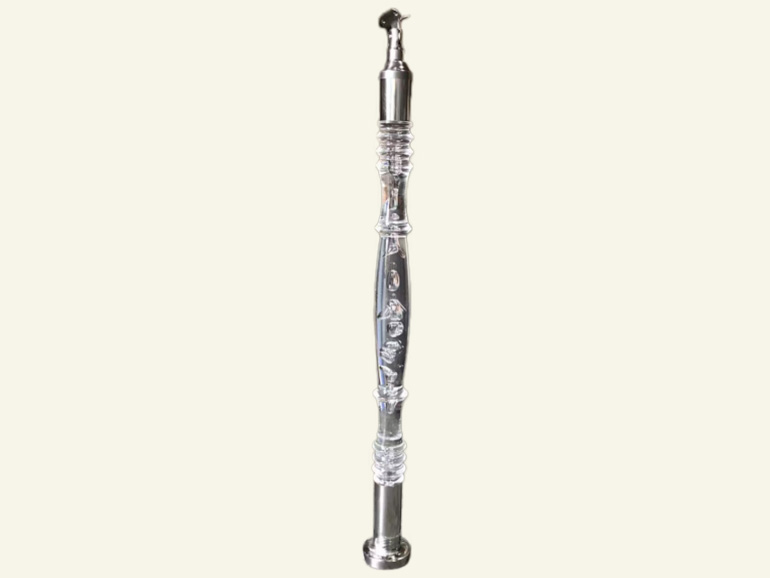

| Model Number | KLE-216 |
| Brand / Supply Channel | HOYIP (Factory Direct Supply) |
| Material & Finishes |
Main Body: High-Transparency Cast Acrylic (PMMA) Hardware Parts: Grade 304 / 201 Stainless Steel Optional Hardware Finishes: Mirror Polished, Satin / Brushed, Rose Gold, Titanium Gold |
| Total Height | 950 mm (Customizable range: 850 mm – 950 mm) |
| Acrylic Body Profile | 60 mm Diameter (Standard Straight Cylinder Profile) |
| Base Flange | 100 mm Diameter, Heavy-Duty reinforced stainless steel base for stable floor mounting |
| Glass Clamps | 4 Sets of Stainless Steel Clamps per post (Suitable for glass thickness: 8 mm – 12 mm) |
| Top Connector | Universal Handrail Bracket (Adjustable angle, compatible with round or square handrails) |
| Internal Pattern | Optional: Clear Crystal Bubbles, Amber Yellow Bubbles, or Solid Clear (Bespoke customized patterns available) |
| Net Weight | 4.2 kg – 4.8 kg / PC (Depending on the final custom specifications) |
| Installation & Usability |
Method: Floor-mounted / Surface mounted with heavy-duty expansion bolts Fixing: Glass and handrails secured tightly via specialized clamps Suitability: Certified for both Indoor and Outdoor environments |
| Certification & Service |
Quality Standard: ISO9001 Certified Compliance: Meets global structural building safety requirements Services: Full OEM / ODM customization available |
